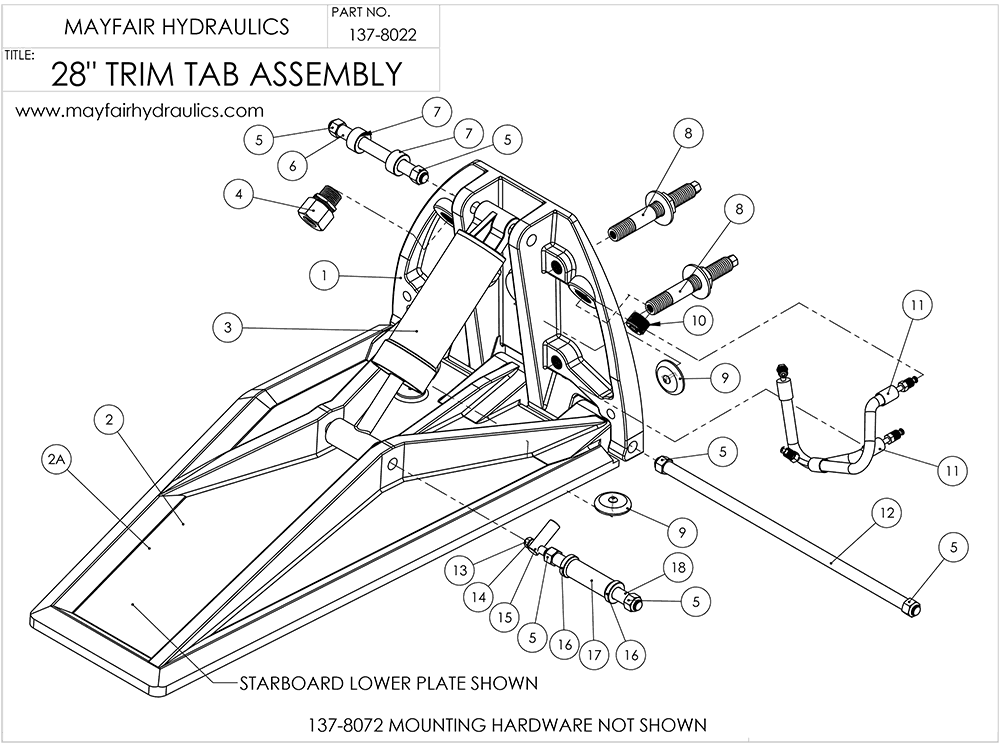

Mayfair Gen 1 Trim Tabs – 28″

ITEM NO.PART NUMBERDESCRIPTIONQTY.
1137-8043TRANSOM PLATE1
2, 2A137-8024 (no indicators) | 137-8025 (with indicator provision)LOWER TRIM TABS PORT AND STARBOARD KIT1
3137-8000SS TRIM RAM1
4137-8054CABLE THRU HULL1
590043CN-FNSSNUT3
6137-8056UPPER TRIM RAM PIN1
7137-8061UPPER TRIM RAM BUSHING1
8137-8066OIL LINE THRU HULL2
9137-8070TRIM TAB ZINC2
10540-223012PLUG, 1/2″ NPT SS2
11137-8266TRIM RAM HOSE2
12137-8058TRIM TAB HINGE PIN1
1390010CN-FNSSNUT1
1490010AN-STSSWASHER, TRIM TAB1
15137-8059TRIM TAB CABLE END1
16137-8062LOWER TRIM RAM BUSHING2
17137-8060TRIM RAM TO PINS BUSHING1
18137-8057TRIM RAM WITH ACTUATOR PIN1
19137-8072MOUNTING HARDWARE1
